Tool for Closed Traverse
Published Date: Nov. 11, 2024, 4:39 p.m. || Abin Prajapti 147 views
This is a tool for closed traverse with two known coordinates, included angle and distance between the station.

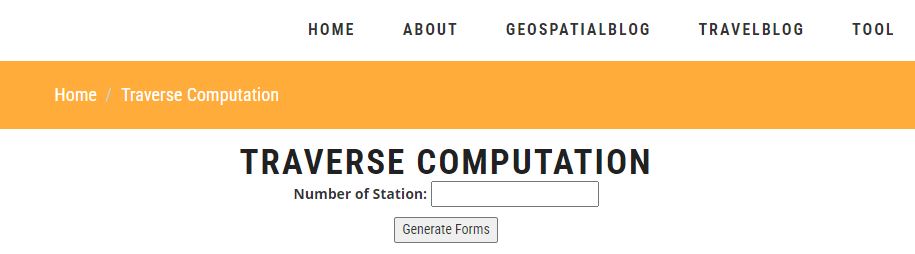

First of all, Click on the tool button and then Traverse tool. Then below page will open.
Enter the number of station and then click Generate Forms.

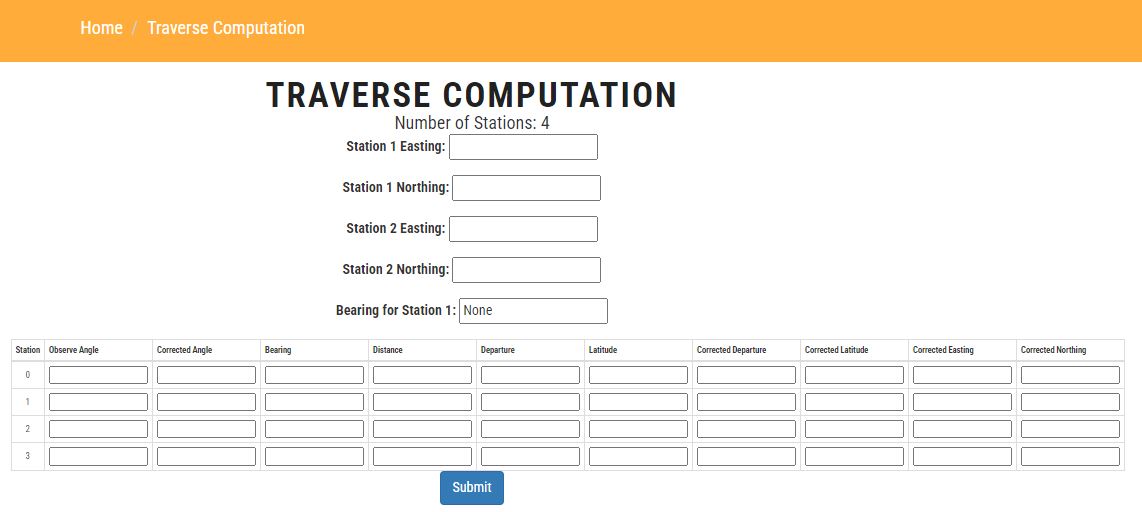

Then, below form will open
Enter the coordinates for two adjoining stations, ensuring station 2 is positioned counterclockwise relative to station1.
Provide the observed angle and distance between the stations, then click submit.
Now the corrected Easting and corrected northing will be computed automatically.
